Mesh Double-sided Tape Manufacturer
- Aggressive Double-Sided Tack
- High Tensile & Anti-Tear Core
- Residue-Free Clean Removal
- Multi-Surface Versatility
- Flexible & Conformable
1. PRODUCT SPECIFICATIONS
These are the standard SKUs. Custom runs take about 1 weeks longer.
| Item | Standard Spec |

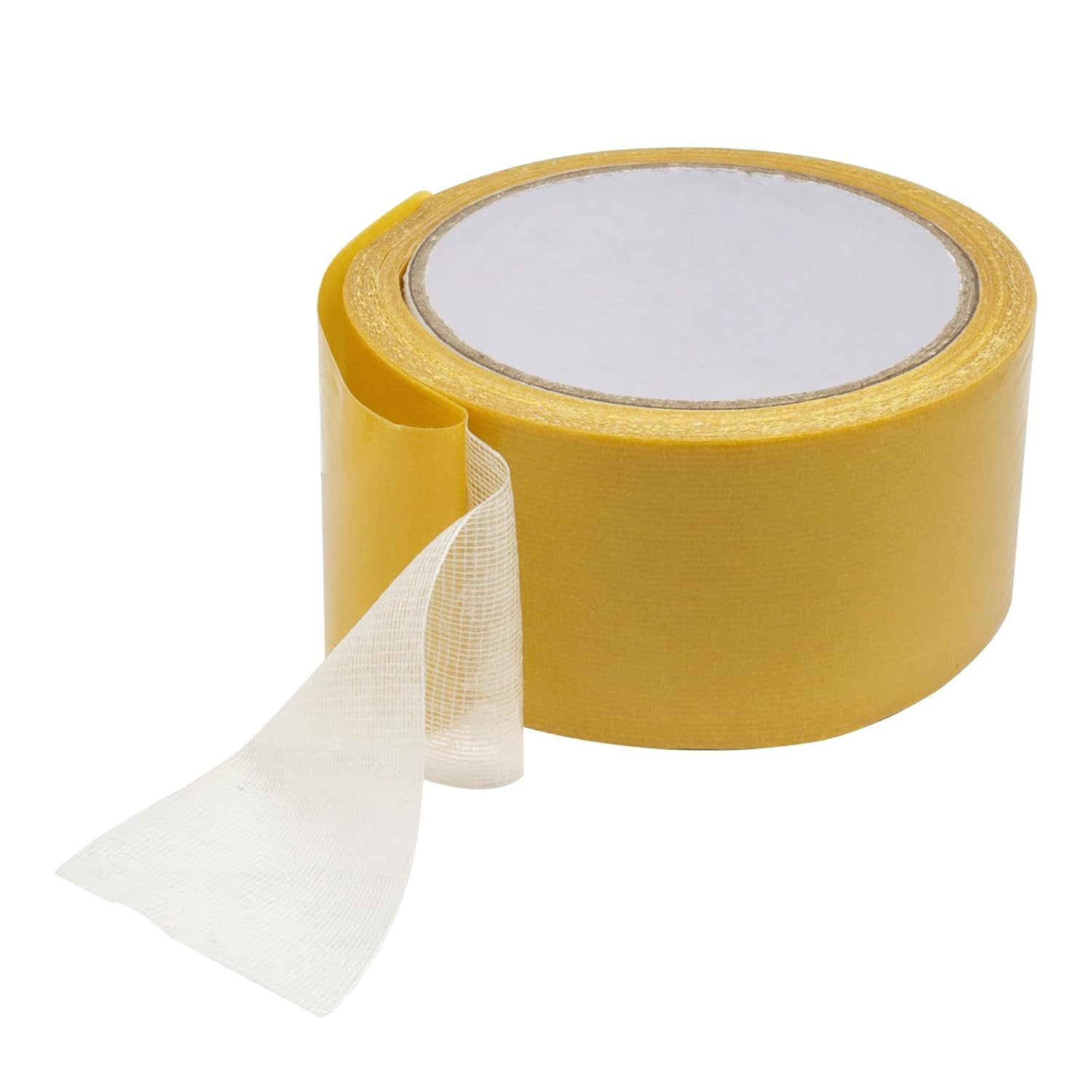

| Product type | Mesh double-sided tape with a fiber-cloth carrier and hot-melt adhesive on both sides for suitable bonding, fixing, and joining applications. |
| Carrier material | Fiber cloth mesh provides the carrier structure between the two adhesive faces and helps the tape handle cleanly during application. |
| Adhesive | Hot-melt adhesive is coated on both sides for pressure-sensitive bonding; exact tack, peel adhesion, holding power, and temperature limits are construction-specific. |
| Adhesive faces | Both sides are adhesive-coated. Use the release liner or separator supplied with the selected construction and expose each side only when ready to bond. |
| Standard thickness | 220 μm (0.22 mm) total thickness. Customizable, but a higher MOQ applies. |
| Standard widths | 10 mm, 20 mm, 30 mm, 40 mm, and 50 mm. Customizable, but a higher MOQ applies. |
| Standard lengths | 5 m, 10 m, and 20 m. Customizable, but a higher MOQ applies. |
| Primary applications | Common applications include carpet and rug joining, mat fixing, selected mounting work, trim attachment, display assembly, and general indoor bonding after a surface test. |
| Bonding surfaces | Suitable substrates may include carpet backing, fabric, paper, board, wood, plastic, metal, and other smooth surfaces, subject to compatibility testing. |
| Surface preparation | Surfaces should be clean, dry, sound, and free from dust, oil, loose fibers, moisture, and release agents before bonding. |
| Application method | Measure and cut the tape, position one side, press firmly, remove the liner, align the second material, and apply even pressure across the bonded area. |
| Pressure and dwell | Firm, even pressure improves contact. Final bond build and handling time depend on the adhesive, materials, temperature, pressure, and application conditions. |
| Temperature and ageing | Service temperature, ageing, plasticizer resistance, shear holding power, and humidity performance vary by hot-melt formula and must be confirmed on the current factory TDS. |
| Packing options | Roll labels, release liner, core size, individual bags, retail cards, carton quantity, private-label artwork, and export packing can be reviewed by order. |
| Customization | Thickness, width, and length can be customized. Customized dimensions may require a higher MOQ and should be confirmed with a sample and quotation. |
| Payment | 30% T/T deposit, 70% before shipment. L/C accepted for orders >$15K. |
2. WHY BUILDERS REORDER FROM US
(Direct-use reasons for flooring distributors, carpet installers, hardware buyers, display contractors, repair-kit brands, and private-label customers)
🔨 “It gives the installer two working adhesive faces”
The carrier is ready for a two-step application: fix the first material, remove the liner, and bring the second material into position. That keeps a joining job easy to understand on site.
🔨 “The mesh carrier is easier to handle than a loose adhesive film”
Fiber cloth gives the tape a little structure while it is being measured, cut, and aligned. It helps the strip stay manageable around a seam or narrow edge.
🔨 “The width range covers small and broad bonding lines”
10 mm and 20 mm suit narrow trim or edge work, while 30 mm, 40 mm, and 50 mm provide more adhesive area for carpet, mats, and wider joining details.
🔨 “Roll lengths fit different sales channels”
A 5 m roll is convenient for a repair kit or small project. 10 m and 20 m formats give installers and distributors more material for repeat work without changing the basic tape construction.
🔨 “The thickness is clear and easy to compare”
The standard specification is 220 μm, or 0.22 mm. Buyers can compare the compact bond line against their material clearance before requesting a custom build.
🔨 “Custom sizes come with straightforward MOQ planning”
Thickness, width, and length can be adjusted for a brand or project. A higher MOQ applies, so Judy can check the sample, packing, and quantity before production is confirmed.
3. FREQUENTLY ASKED QUESTIONS
Q1: What is mesh double-sided tape used for?
A: Common uses include carpet and rug joining, mat fixing, selected mounting, trim attachment, display assembly, and other suitable indoor bonding work. Test the actual materials before volume use.
Q2: What is the carrier made from?
A: The carrier is fiber cloth mesh. The adhesive on both sides is hot melt.
Q3: What does 220 μm mean?
A: It is the stated total thickness of the tape: 220 micrometres, or about 0.22 mm. Actual production tolerance should be confirmed on the factory specification sheet.
Q4: Which width should we choose?
A: Standard widths are 10 mm, 20 mm, 30 mm, 40 mm, and 50 mm. Choose according to the seam width, required adhesive area, material overlap, and the clearance of the finished assembly.
Q5: What roll lengths are available?
A: Standard lengths are 5 m, 10 m, and 20 m. Each length can be customized, but a higher MOQ applies to customized dimensions.
Q6: How do we apply the tape?
A: Clean and dry both surfaces, measure and cut the tape, bond the first side with firm pressure, remove the liner, align the second material, and press the full area evenly.
Q7: Can it be used on carpet and fabric?
A: It can be suitable for carpet, rug, mat, and fabric joining or fixing, depending on the backing, pile, coating, and use conditions. A sample test is recommended before specifying the final product.
Q8: Can the thickness, width, length, and packaging be customized?
A: Yes. Thickness, width, and length can all be customized, but a higher MOQ applies. Release liner, label, core, roll count, retail pack, carton, and private-label details can also be reviewed.
